If the elevator descends with excessive speed, the descending brake will be used to support the general descending safety gear, enable the safety gear, stop the car, playing the role of descending over-speed protection.
If the elevator ascends with excessive speed, the over-speed switch can be turned off to cut off the power and stop the car. If the car doesn’t stop due to some reason, the wire rope will be pulled to enable the mechanical rope clamp, so as to control the over-speed protection on the elevator car.
| Product Name | Description | |

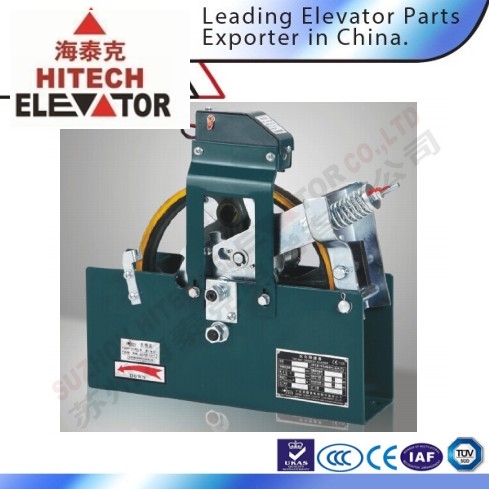

| Bi-directional Overspeed Governor | Model | HI-OX240F |
| Rated Speed | <=2.5m/s | |
| Wire Rope Diameter(mm) | Φ6, Φ8 | |
| Sheave Diameter(mm) | Φ240mm | |
| Tension Force | >=1000N | |
| Overspeed Switch Voltage | AC220V | |
| Bi-directional Overspeed Governor | Model | HI-OX240B |
| Rated Speed | <=2.5m/s | |
| Wire Rope Diameter(mm) | Φ6, Φ8 | |
| Sheave Diameter(mm) | Φ240mm | |
| Tension Force | >=1000N | |
| Overspeed Switch Voltage | AC220V | |
| Bi-directional Overspeed Governor for MRL | Model | HI-OX240E |
| Rated Speed | <=0.63m/s | |
| Wire Rope Diameter(mm) | Φ6, Φ8 | |
| Sheave Diameter(mm) | Φ240mm | |
| Tension Force | >=1000N | |
| Overspeed Switch Voltage | AC220V/DC24V | |
| Switch Electromagnetic Voltage | AC220V/DC24V | |
| Action Electromagnetic Voltage | AC220V/DC24V | |
| Uni-directional Overspeed Governor for MRL | Model | HI-OX240A |
| Rated Speed | <=1.75m/s | |
| Wire Rope Diameter(mm) | Φ6, Φ8 | |
| Sheave Diameter(mm) | Φ240mm | |
| Tension Force | >=1000N | |
| Overspeed Switch Voltage | AC220V/DC24V | |
| Switch Electromagnetic Voltage | AC220V/DC24V | |
| Action Electromagnetic Voltage | AC220V/DC24V | |
| Bi-directional Overspeed Governor for MRL | Model | HI-OX187 |
| Rated Speed | <=1.75m/s | |
| Wire Rope Diameter(mm) | Φ6, Φ8 | |
| Sheave Diameter(mm) | Φ240mm | |
| Tension Force | >=500N | |
| Overspeed Switch Voltage | AC220V/DC24V | |
| Switch Electromagnetic Voltage | AC220V/DC24V | |
| Action Electromagnetic Voltage | AC220V/DC24V | |
| Bi-directional Overspeed Governor for MRL Home Elevator | Model | HI-OX186 |
| Rated Speed | <=0.63m/s | |
| Wire Rope Diameter(mm) | Φ6 | |
| Sheave Diameter(mm) | Φ200mm | |
| Tension Force | >=500N | |
| Overspeed Switch Voltage | AC220V/DC24V | |
| Switch Electromagnetic Voltage | AC220V/DC24V | |
| Action Electromagnetic Voltage | AC220V/DC24V | |
| Uni-directional Overspeed Governor | Model | HI-OX240 |
| Rated Speed | <=2.5m/s | |
| Wire Rope Diameter(mm) | Φ6, Φ8 | |
| Sheave Diameter(mm) | Φ240mm | |
| Tension Force | >=1000N | |
| Overspeed Switch Voltage | AC220V/DC24V | |
Porducts can be packed in wooden cases and carton box
